Gallu hyd at 16 Cŵn Gwyrdd Uwch Gludog Sengl - Newyddion

Gallu hyd at 16 Cŵn Crane Gwyrdd Unigol Gwyrdd

- May 03, 2018 -

Gwybodaeth Sylfaenol

Enw: Gallu hyd at 16 Tunnell Crane Gorsaf Unigol Gwyrdd

Model NAD: LD

Uchder Codi: hyd at 20m

Grŵp Dyletswydd: A3-A5

Dull Rheoli: Pendent / Wireless

Cais: Defnydd Adeiladu, Defnydd Gweithdy, Defnydd Ardal Mwynau

Math Sling: Rope Wire

Ffynhonnell Pŵer: Trydan

Symud Math: Olwyn

Gosod: Ymgynnull

Math Crane Tŵr: Crane Teithio Uwchben

Pecyn Trafnidiaeth: Blwch Coed

Manyleb: Gallu: 2-10T, Span: 5-30M

Tarddiad: Henan, Tsieina

Disgrifiad o'r Cynnyrch

Rhan 1: Disgrifiad

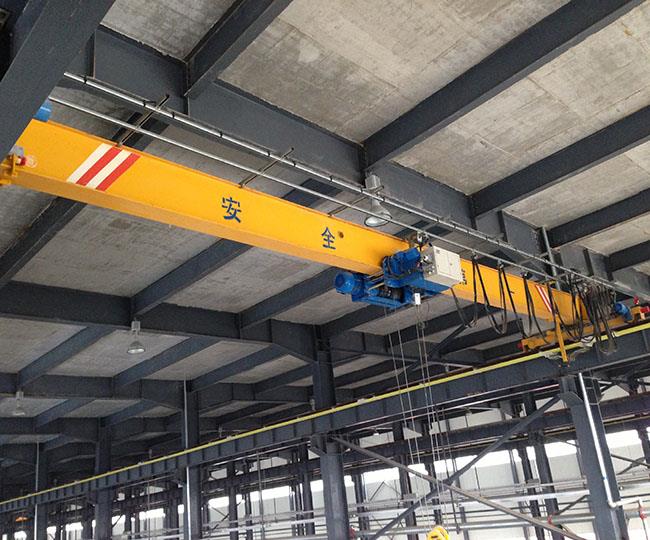

Fel arfer, mae craeniau gorchuddion sengl LD math yn cynnwys un adeiladu girder. Gellir adeiladu'r rhain gyda thrawstiau dur neu fath gwyrdd blwch weldio mwy trylwyr. Mae Craeniau Gyrru Sengl yn fwy nodweddiadol wrth godi capasiti llai na 20T. Defnyddir craeniau Gorsaf Sengl LD Sengl yn eang yn ein maes diwydiannol. Fe'i cymhwysir mewn gweithfeydd dur, Hydropower Plant, Warehouse, Gweithdy, Llinell Gynhyrchu, Siop Cynnal a Chadw, Cludiant Deunydd, Siop y Cynulliad Offer etc. Mae gennym offer safonol cynhwysfawr ac ystod eang o ategolion sy'n addas ar gyfer gofynion unigol.

Rhan 2: Ffurfweddiad Manwl:

1- Mecanwaith Codi
- Hysbysiad rhaffau gwifren Monorail neu orchudd cadwyn fel opsiwn: cyflymder symud: un neu ddeuol fel sy'n ofynnol
- Cyflymder Troli: Unigol neu Ddeuol neu Gam yn llai fel sy'n ofynnol
- Perfformiad uchel gyda'r pris mwyaf economaidd

Carregau 2-Diwedd
- cerbyd diwedd math blwch wedi'i weldio
- Dylunio modulau
- modur cawell gwiwerod neu modur cychwyn meddal fel opsiwn
- Cyflymder Teithio: Unigol neu Ddeuol neu Gam yn llai fel sy'n ofynnol

3-Prif Gludwr
- Blwch weldio dwys Girder neu adran dur gwag cadarn
- Dylunio modulau
- Wedi'i wneud o ddur Q235 neu Q345
- Deflection Design1 / 750 o rychwant

4-Reoli
-cynnwys rheolaeth pendant yn teithio ar hyd C-trac
- o reolaeth diwifr fel opsiwn
- wrth reoli caban fel opsiwn

Rhan 5-Trydan
-Cyflenwad pŵer cyflenwr (fel opsiwn)
- Mae'r paneli rheoli yn IP54 neu IP44 yn dibynnu ar weithio amgylchynol.
- Mae'r cydrannau wedi'u lleoli mewn ffordd gynhaliaeth gyfeillgar, ac mae'r cynllun cyfan yn darparu amddiffyniad da
-Baiff ceblau aros yn cael eu hatal ar gyfrwythau cebl, wedi'u gosod i droliau cebl, gan redeg mewn trac C galfanedig.
-Main rhan drydan yn y brand Schneider neu Siemens

6-Peintio
- diogelu gwydr trwy gael gwared â rhwd trwy ddefnyddio chwistrellu mecanyddol SA 2.5
- Haen gyntaf o cotio epocsi 30 micron
-Talen haen o eicon x 30 micron
- Haen Gyfartal cotio polyurethane 40 microns
- Trwch trwchus: tua 100 micron
-Color: melyn neu Oren yn ôl y gofynion

Diogelwch Diogel 7
-Defnydd cyflymder-ymuno
-mwythwch warchodaeth
-diogelwch
teithio traws a diogelu teithio hir
diogelu teithio sy'n codi
-Diogelwch gwresogi modur

Rhan 3: Braslun a Data Technegol

Gallu (t)	rhychwant (m)	cyfanswm pwysau (G)	llwyth olwyn uchaf (kN)	llwyth olwyn fach (kN)	H1	H2	H3	W	B	C1	C2
1	7.5	1.67	8.9	3.9	490	910	550	2000	2500	796	1274
	8	1.72	9.1	4.0
	8.5	1.77	9.2	4.1
	9	1.81	9.4	4.3
	9.5	1.86	9.5	4.4
	10	1.91	9.7	4.5
	10.5	1.96	9.8	4.6
	11	1.95	9.8	4.6
	11.5	2.00	10.0	4.7
	12	2.05	10.1	4.8
	12.5	2.09	10.2	4.9
	13	2.14	10.4	5.0
	13.5	2.19	10.5	5.2
	14	2.24	10.6	5.3
	14.5	2.43	11.1	5.8		955	595	2500	3000
	15	2.48	11.3	5.9
	15.5	2.53	11.4	6.0
	16	2.58	11.5	6.1
	16.5	2.63	11.7	6.3
	17	2.66	11.7	6.3
	17.5	2.85	12.2	6.8	530	970	650
	18	2.90	12.4	6.9
	18.5	2.96	12.5	7.1
	19	3.01	12.7	7.2
	19.5	3.02	12.7	7.2
	20	3.20	13.1	7.7	580		700	3000	3500
	20.5	3.26	13.3	7.8
	21	3.32	13.4	8.0
	21.5	3.37	13.6	8.1
	22	3.43	13.7	8.2
	22.5	3.49	13.9	8.4
	23	4.07	15.3	9.8	660	990	800	3500	4000
	23.5	4.13	15.5	10.0
	24	4.20	15.7	10.2
	24.5	4.26	15.8	10.3
	25	4.32	16.0	10.5
	25.5	4.39	16.2	10.6
	26	5.35	18.6	13.0	745	1010	900	4000	4500
	26.5	5.43	18.8	13.2
	27	5.52	19.0	13.5
	27.5	5.60	19.2	13.7
	28	5.68	19.4	13.9
	28.5	5.76	19.6	14.1
Gallu (t)	rhychwant (m)	cyfanswm pwysau (G)	llwyth olwyn uchaf (kN)	llwyth olwyn fach (kN)	H1	H2	H3	W	B	C1	C2
2	7.5	1.79	13.8	4.1	490	1080	550	2000	2500	871	1274
	8	1.84	14.0	4.2
	8.5	1.88	14.1	4.3
	9	1.93	14.3	4.4
	9.5	1.98	14.5	4.5
	10	2.03	14.7	4.6
	10.5	2.07	14.8	4.7
	11	2.12	15.0	4.8
	11.5	2.25	15.4	5.1		1125	595
	12	2.30	15.5	5.3
	12.5	2.35	15.7	5.4
	13	2.40	15.8	5.5
	13.5	2.45	16.0	5.6
	14	2.50	16.1	5.8
	14.5	2.62	16.5	6.1	580	1140	700	2500	3000
	15	2.68	16.6	6.2
	15.5	2.74	16.8	6.3
	16	2.79	17.0	6.5
	16.5	2.85	17.1	6.6
	17	2.91	17.3	6.8
	17.5	3.23	18.1	7.6	660	1160	800
	18	3.30	18.3	7.7
	18.5	3.36	18.5	7.9
	19	3.42	18.6	8.0
	19.5	3.49	18.8	8.2
	20	4.09	20.3	9.7	785	1135	900	3000	3500
	20.5	4.17	20.5	9.9
	21	4.24	20.7	10.1
	21.5	4.32	20.9	10.3
	22	4.40	21.1	10.5
	22.5	4.47	21.3	10.7
	23	5.31	23.4	12.7	820	1200	1000	3500	4000
	23.5	5.40	23.7	13.0
	24	5.49	23.9	13.2
	24.5	5.57	24.1	13.4
	25	5.66	24.3	13.6
	25.5	5.75	24.6	13.8
	26	6.40	26.2	15.5	875	1250	1100	4000	4500
	26.5	6.50	26.5	15.7
	27	6.60	26.7	16.0
	27.5	6.69	27.0	16.2
	28	6.79	27.2	16.4
	28.5	6.89	27.5	16.7
Gallu (t)	rhychwant (m)	cyfanswm pwysau (G)	llwyth olwyn uchaf (kN)	llwyth olwyn fach (kN)	H1	H2	H3	W	B	C1	C2
3	7.5	1.93	18.9	4.2	530	1255	650	2000	2500	818.5	1291
	8	1.98	19.1	4.3
	8.5	2.03	19.4	4.4
	9	2.09	19.6	4.5
	9.5	2.14	19.8	4.7
	10	2.20	20.0	4.8
	10.5	2.25	20.2	4.9
	11	2.31	20.4	5.0
	11.5	2.41	20.7	5.3	580		700
	12	2.47	20.9	5.4
	12.5	2.53	21.1	5.6
	13	2.59	21.3	5.7
	13.5	2.64	21.5	5.9
	14	2.70	21.7	6.0
	14.5	3.02	22.5	6.8	660	1275	800	2500	3000
	15	3.08	22.7	6.9
	15.5	3.14	22.9	7.1
	16	3.21	23.1	7.2
	16.5	3.27	23.2	7.4
	17	3.34	23.4	7.6
	17.5	3.84	24.7	8.8	745	1290	900
	18	3.91	24.9	9.0
	18.5	3.99	25.1	9.2
	19	4.06	25.3	9.4
	19.5	4.14	25.5	9.6
	20	4.92	27.5	11.5	820	1315	1100	3000	3500
	20.5	5.01	27.7	11.7
	21	5.09	28.0	11.9
	21.5	5.18	28.2	12.2
	22	5.27	28.4	12.4
	22.5	5.36	28.7	12.6
	23	5.71	29.6	13.5	875	1360		3500	4000
	23.5	5.80	29.8	13.7
	24	5.89	30.0	13.9
	24.5	5.99	30.3	14.2
	25	6.08	30.5	14.4
	25.5	6.17	30.8	14.6
	26	7.97	35.3	19.1	925	1660	1200	4000	4500
	26.5	8.09	35.6	19.4
	27	8.22	35.9	19.7
	27.5	8.34	36.2	20.0
	28	8.46	36.6	20.3
	28.5	8.59	36.9	20.7
Gallu (t)	rhychwant (m)	cyfanswm pwysau (G)	llwyth olwyn uchaf (kN)	llwyth olwyn fach (kN)	H1	H2	H3	W	B	C1	C2
5	7.5	2.20	28.7	4.6	580	1460	720	2000	2500	841.5	1310
	8	2.27	29.0	4.7
	8.5	2.33	29.3	4.9
	9	2.40	29.7	5.0
	9.5	2.46	30.0	5.2
	10	2.53	30.2	5.3
	10.5	2.59	30.5	5.5
	11	2.66	30.8	5.6
	11.5	2.91	31.5	6.3	660		800
	12	2.98	31.8	6.4
	12.5	3.05	32.0	6.6
	13	3.12	32.3	6.8
	13.5	3.20	32.5	6.9
	14	3.27	32.8	7.1
	14.5	3.52	33.5	7.7	745	1540	900	2500	3000
	15	3.60	33.7	7.9
	15.5	3.68	33.9	8.1
	16	3.75	34.2	8.3
	16.5	3.83	34.4	8.5
	17	3.90	34.6	8.7
	17.5	4.41	35.9	9.9	820	1500	1000
	18	4.50	36.2	10.2
	18.5	4.59	36.5	10.4
	19	4.68	36.7	10.6
	19.5	4.76	37.0	10.8
	20	5.23	38.2	12.0	875	1545	1100	3000	3500
	20.5	5.33	38.4	12.2
	21	5.42	38.7	12.4
	21.5	5.51	38.9	12.7
	22	5.60	39.2	12.9
	22.5	5.70	39.5	13.1
	23	7.08	42.9	16.6	925	1595	1200	3500	4000
	23.5	7.20	43.2	16.9
	24	7.32	43.6	17.2
	24.5	7.43	43.9	17.4
	25	7.55	44.2	17.7
	25.5	7.67	44.5	18.0
	26	9.01	47.9	21.4	1015	1670	1300	4000	4500
	26.5	9.16	48.3	21.7
	27	9.30	48.6	22.1
	27.5	9.44	49.0	22.5
	28	9.58	49.4	22.8
	28.5	9.72	49.7	23.2
Gallu (t)	rhychwant (m)	cyfanswm pwysau (G)	llwyth olwyn uchaf (kN)	llwyth olwyn fach (kN)	H1	H2	H3	W	B	C1	C2
10	7.5	3.26	51.3	6.1	720	1850	900	2000	2500	1293	1893
	8	3.34	52.1	6.3
	8.5	3.43	52.9	6.5
	9	3.51	53.5	6.6
	9.5	3.59	54.2	6.8
	10	3.67	54.8	7.0
	10.5	3.76	55.3	7.2
	11	3.84	55.8	7.3
	11.5	4.05	56.6	7.9	820	1850	1000
	12	4.14	57.1	8.1
	12.5	4.22	57.6	8.3
	13	4.31	58.0	8.5
	13.5	4.40	58.4	8.7
	14	4.49	58.8	8.9
	14.5	4.80	59.8	9.6	875	1900	1100	2500	3000
	15	4.89	60.2	9.8
	15.5	4.98	60.6	10.1
	16	5.07	60.9	10.3
	16.5	5.17	61.3	10.5
	17	5.26	61.7	10.7
	17.5	5.53	62.5	11.4		1940	1140
	18	5.63	62.8	11.6
	18.5	5.73	63.2	11.9
	19	5.83	63.5	12.1
	19.5	5.92	63.9	12.3
	20	6.89	66.4	14.8	925	2000	1250	3000	3500
	20.5	7.01	66.8	15.0
	21	7.12	67.1	15.3
	21.5	7.24	67.5	15.6
	22	7.36	67.9	15.9
	22.5	7.48	68.2	16.2
	23	8.96	72	19.9	1100	1920	1350	3500	4000
	23.5	9.11	72.5	20.3
	24	9.26	72.9	20.6
	24.5	9.41	73.3	21.0
	25	9.56	73.8	21.4
	25.5	9.71	74.2	21.7
	26	13.09	82.7	30.2	1200		1450	4000	4700
	26.5	13.29	83.3	30.7
	27	13.48	83.8	31.2
	27.5	13.67	84.3	31.6
	28	13.86	84.8	32.1
	28.5	14.05	85.4	32.6
Gallu (t)	rhychwant (m)	cyfanswm pwysau (G)	llwyth olwyn uchaf (kN)	llwyth olwyn fach (kN)	H1	H2	H3	W	B	C1	C2
16	7.5	3.64	77.2	7.0	820	2480	1000	2000	2500	1293	1893
	8	3.74	78.3	7.2
	8.5	3.84	79.4	7.4
	9	3.94	80.4	7.6
	9.5	4.04	81.3	7.9
	10	4.14	82.1	8.1
	10.5	4.24	82.9	8.3
	11	4.34	83.6	8.5
	11.5	4.55	84.6	9.0	875	2525	1100
	12	4.66	85.2	9.3
	12.5	4.76	85.9	9.5
	13	4.87	86.5	9.8
	13.5	4.97	87.1	10.0
	14	5.08	87.6	10.3
	14.5	5.93	90.0	12.4	975		1200	2500	3000
	15	6.06	90.6	12.7
	15.5	6.18	91.1	13.0
	16	6.31	91.7	13.3
	16.5	6.43	92.2	13.6
	17	6.56	92.7	13.9
	17.5	7.19	94.5	15.5	1075		1300
	18	7.33	95.0	15.8
	18.5	7.47	95.5	16.1
	19	7.61	96.0	16.5
	19.5	7.75	96.5	16.8
	20	8.56	98.7	18.9	1130	2570	1400	3000	3500
	20.5	8.72	99.2	19.2
	21	8.87	99.7	19.6
	21.5	9.03	100.2	20.0
	22	9.18	100.8	20.4
	22.5	9.34	101.3	20.8
	23	12.41	109.0	28.4	1280		1550	3500	4000
	23.5	12.61	109.6	28.9
	24	12.81	110.2	29.4
	24.5	13.02	110.9	30.0
	25	13.22	111.5	30.5
	25.5	13.43	112.0	31.0
	26	14.34	114.4	33.2	1300	2600	1600	4000	4700
	26.5	14.55	115.0	33.8
	27	14.77	115.6	34.3
	27.5	14.98	116.3	34.8
	28	15.20	116.9	35.4
	28.5	15.42	117.5	35.9
Gallu (t)	rhychwant (m)	cyfanswm pwysau (G)	llwyth olwyn uchaf (kN)	llwyth olwyn fach (kN)	H1	H2	H3	W	B	C1	C2
20	7.5	5.45	97.9	10.2	900	2450	1050	2000	2700	1394	1933
	8	5.58	99.5	10.5
	8.5	5.70	101.0	10.7
	9	5.83	102.3	11.0
	9.5	5.96	103.5	11.3
	10	6.09	104.6	11.6
	10.5	6.22	105.7	11.8
	11	6.35	106.6	12.1
	11.5	6.99	108.8	13.7	970	2480	1150
	12	7.15	109.8	14.0
	12.5	7.30	110.7	14.4
	13	7.45	111.5	14.7
	13.5	7.60	112.3	15.1
	14	7.76	113.1	15.5
	14.5	8.67	115.8	17.7	1050	2530	1280	2500	3200
	15	8.85	116.6	18.1
	15.5	9.02	117.3	18.6
	16	9.20	118.1	19.0
	16.5	9.37	118.8	19.4
	17	9.55	119.5	19.8
	17.5	10.50	122.2	22.2	1130	2560	1390
	18	10.70	122.9	22.7
	18.5	10.89	123.6	23.1
	19	11.09	124.3	23.6
	19.5	11.28	125.0	24.1
	20	12.02	127.0	25.9	1200	2600	1500	3000	3700
	20.5	12.23	127.7	26.4
	21	12.44	128.4	26.9
	21.5	12.64	129.1	27.4
	22	12.85	129.8	27.9
	22.5	12.96	130.5	28.5
	23	13.88	132.7	30.5	1300		1600	3500	4200
	23.5	14.10	133.4	31.0
	24	14.31	134.0	31.6
	24.5	14.52	134.78	32.1
	25	14.74	135.4	32.6
	25.5	14.96	135.6	33.1
